Gage & Fixture
Accurate measurements are crucial for any project, which is why we offer a wide selection of quality fixture and gage products, including everything from triggers and bushings, to tethers and pins.
Whether you need to measure the thickness of a part, check its length, or gauge its diameter, our custom-made gage assemblies have you covered. Made from high-quality materials, these assemblies remain stable and accurate even in demanding environments. We offer a wide range of options including single and double-end ball feelers, etched handles, bent gage assemblies and more.
Gage Assemblies
A Wide Variety of Gage Assemblies for Accurate Results
- Micro-Laser Welded
- Grade 25 Steel Balls
- Stainless Steel Stems
- Single & Double Ends
- Custom Sizes
- Etchings
Ball Feelers
Enhanced Precision with Ball Feelers: An Important Component in For Your Gage Assemblies
- Grade 25 Steel Balls
- Custom Sizes
- Straight & Bent
- Etching
- Double End
Pins
Dependable Cups for Precise Positioning
- L Pins
- T Pins
- Pull Dowels
- Split Roll Pins
- Alloy Plain & Stainless
- Drill Rods

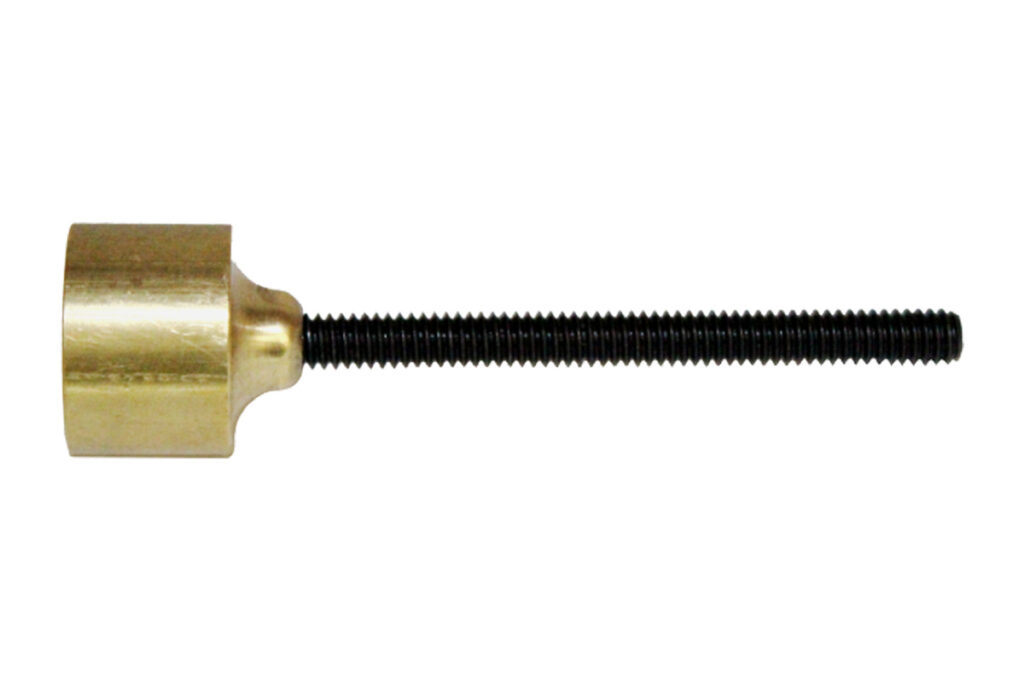

Cups
Dependable Cups for Precise Positioning

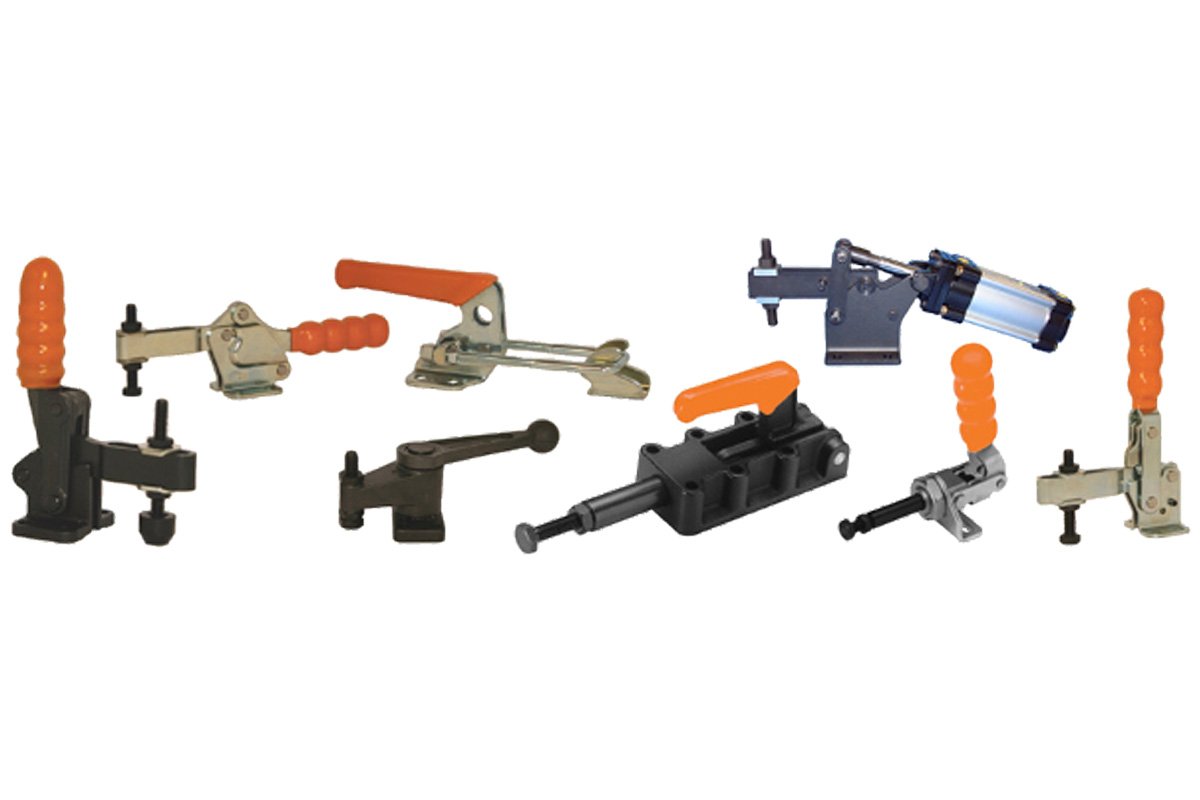

Clamps
Secure Your Measurements with Clamps
- Brauer
- Vertical
- Push-Pull Slimline
- Push-Pull Heavy Duty
- Fork Clamp
- Brass Cup Clamp Extenders
- Two Stage Clamp Ends
Bushings
Precision Bushings for Consistent Results
- Drill
- Headless Press Fit
- Head Press Fit
- Slip-Fixed Renewable
- Standard & Metric
Gage Handles & Gage Bushings
Ergonomic Gauge Handles for Enhanced Control
- Polished
- Anodized
Gripper Clips
Efficient Gripper Clips for Quick Adjustments
SPC Triggers
Trigger Precision with Our Quality Components
- Short & Long Arm
- Left & Right Hand
- 90 Degree
- Chisel Tip
- Locking Features
- S & L – 31mm, 50mm, 55mm
Tethers
Secure Measurement Devices with Tethers
Tooling Balls
Tooling Balls for Calibration and Accuracy
- Standard
- Shoulder
- Cover
- Ball Pad
- Standard Metric
Key Backs/Retractors
Key Backs and Retractors for Consistency and Efficiency
Zero Sets
Zero Sets for Precise Calibration
